• Hanging dry powder fire extinguishing device

FFX-ACT2/3/4/4.5/5/8-ZY

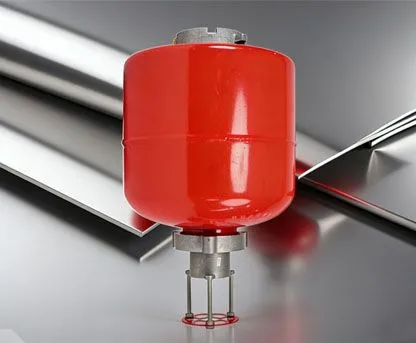

Hanging dry powder fire extinguishing device

1. Ultra fine dry powder fire extinguishing agent has sufficient release pressure, excellent dispersion performance, and good fire suppression ability;

2. After the expiration of the device, the gas producing agent and fire extinguishing agent can be replaced and reused, which is beneficial for reducing operation and maintenance costs;

3. Support both full submergence protection and localized application protection methods;

4. After the fire extinguishing device is triggered, it can output status feedback signals through the startup panel or control module;

5. Equipped with our startup disk, it can achieve synchronous startup of multiple devices linked by a single device; Simultaneously supporting integration with fire alarm control systems;

6. After the device is started, the sitting force and operating noise are relatively small.

This fire extinguishing device is suitable for cable facilities such as cable tunnels, cable interlayers, cable shafts, as well as unmanned places such as high and low voltage distribution rooms, electrical control rooms, communication base stations, diesel generator rooms, various warehouses, and automated production workshops.

  This fire extinguishing device is suitable for cable facilities such as cable tunnels, cable mezzanines, and cable shafts, as well as unattended places such as high and low voltage power distribution rooms, electrical control rooms, communication base stations, diesel generator rooms, various warehouses, and automated production workshops.


Model

Overall

dimension

s (mm)

Ultrafine dry powder

filling capacity

 (kg)

Maximum protection

 volume

(m3)

Optimal installation

height

 (h)

Injection time

 (s)

FFX-ACT2-ZYΦ220*2852+0.116≤3≤5
FFX-ACT3-ZYΦ220*3543+0.1525≤3
FFX-ACT4-ZYΦ220*4034+0.236≤4
FFX-ACT4.5-ZYΦ220*4654.5+0.22536≤5
FFX-ACT5-ZYΦ220*4655+0.2545≤6
FFX-ACT8-ZYΦ220*4658+0.480≤8≤10
