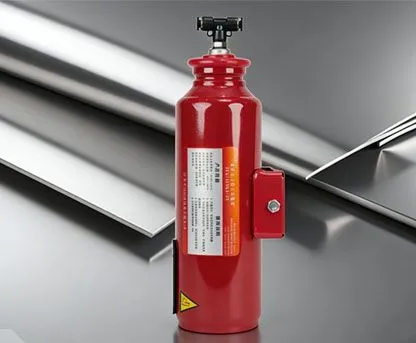

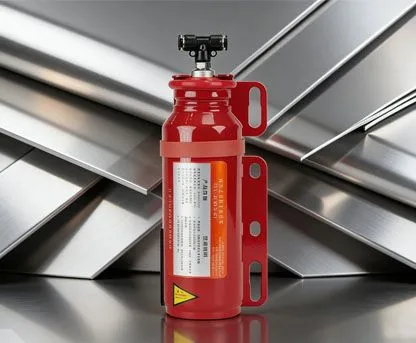

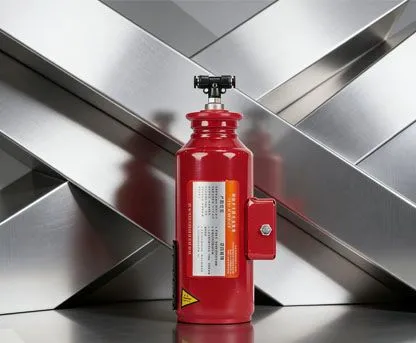

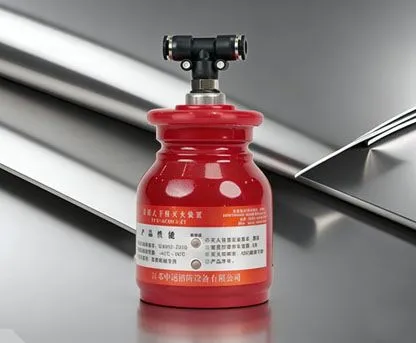

FFX-ACD0.1/0.3/0.4/0.5-ZY
FFX-ACD0.1/0.3/0.4/0.5-ZY suspended dry powder fire extinguishing device consists of three parts: fire extinguishing agent container, control circuit and start alarm button box. The fire extinguishing agent container includes: fixed bracket, fixed connector, and control line connector; the control line includes: temperature sensing cable with connector; the start alarm button box includes: backup power supply, button box control line connector.
| Specifications and models | Overall dimensions (mm) | Weight(g) | Fire extinguishing dose (g) | Protection volume (m³) | Fire extinguishing capability (oil pan) | Operating temperature (℃) |
| FFX-ACD0.1-ZY | Φ65×112 | 210 | 100 | 1 | 8B | -40～+90 |
| FFX-ACD0.3-ZY | Φ65×208 | 530 | 300 | 3 | 13B | |
| FFX-ACD0.4-ZY | Φ76×220 | 700 | 400 | 4 | 21B | |
| FFX-ACD0.5-ZY | Φ76×255 | 830 | 500 | 5 | 34B |
