• Non-storage pressure perfluorohexanone fire extinguishing device (flat type)

BFYF-0.16/0.2Q-ZY

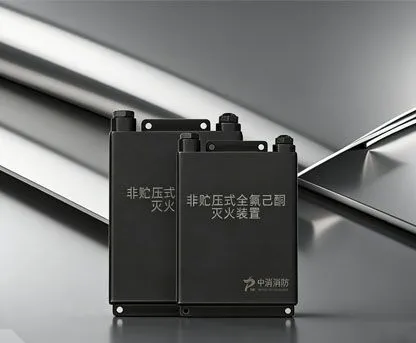

Non-storage pressure perfluorohexanone fire extinguishing device (flat type)

Non-pressure storage perfluorohexanone fire extinguishing device (flat type) is used as a gas fire suppression device in small and special spaces. This fire extinguishing device (flat type) uses highly efficient and environmentally friendly perfluorohexanone as the fire extinguishing agent. It is colorless, odorless, clean and non-toxic, leaves no residue after fire extinguishing, will not cause damage to equipment and the environment, can quickly inhibit combustion reactions, and effectively extinguish Class A, B, C and electrical fires. Suitable for small spaces such as power distribution cabinets, data cabinets, charging piles, communication cabinets, energy storage cabinets, and Pack bags.

Product composition and structure diagram


The rack-type perfluorohexanone fire extinguishing device mainly consists of a container, a chemical block, a sealing film, a nozzle, an isolation mandrel, an initiating thermal line, a starting thermal line, a nozzle, etc.


Technical parameters


Product modelBFYF-0.16Q-ZYBFYF-0.2Q-ZY
Weight(g)740890
Operating temperature range-40℃-70℃
Working humidity≤95%
Product size152*96*16mm167*106*16mm
Protection space (m3)0.57
fire extinguishing agentperfluorohexanone
Fire extinguishing agent filling amount (g)160200
Storage methodnon-storage pressure
injection time≤3s≤5s
Start modeHot start, electric start
