ESKZO1-ZY

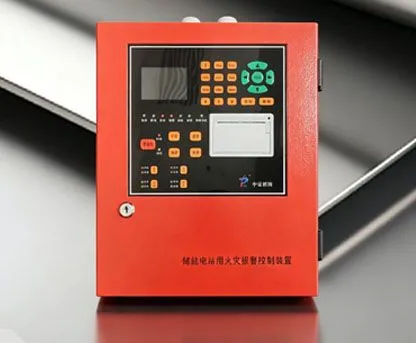

The fire alarm control device for ESKZO1-ZY energy storage power station shall comply with the enterprise standard Q/JSZY ESKZ01-2023. As the data processing and communication center of the electrochemical energy storage compartment fire extinguishing system, it has functions such as detector signal processing, fire extinguishing device start-up control, linkage alarm, BMS linkage communication, etc. The control device adopts a wall mounted structure, with a compact appearance and flexible configuration, making it easy to install and debug. The system is equipped with a Chinese LCD display screen and a matching printer that can print all alarm information and operation records.
The ESKZO1-ZY type fire alarm control device for energy storage power stations is suitable for fire monitoring and alarm scenarios in energy storage power stations. When the host receives the detector alarm signal, it can activate the fire linkage output signal, trigger the backend protective equipment to intervene and handle, create conditions for emergency response to thermal runaway, and help improve the level of personnel and asset safety protection.
| Project | Parameter value |
| Supply voltage | AC 220V |
| Backup battery | DC 12V 2.2AH two sections |
| switching power supply | 27V (±15%) 3A |
| Installation method | wall-mounted |
| Rated power | ≤10W |
| Output power | ≤62W |
| control output | 2 channels DC27V output |
| feedback input | 2 channels of switching signal input feedback |
| Direct start button | 2 channels can be set to direct start button |
| Communication method | 1 channel CAN bus interface 1 channel 2 bus interface |
| show | 320*240LCD dot matrix display |
| Alarm printing interface | thermal printer |
| indicator light | Fire alarm, alarm, start, feedback, normal, fault, system fault, silencer, main power, backup power |
| buzzer | Key sound |
| working temperature | -10℃ to 55℃ |
| Working humidity | ≤93%RH |
| Product size | 360(L)x280(W)x81(H) |
